Google's TPU Supply Chain

Mapping the 15 vendors behind Google's $175B AI compute buildout

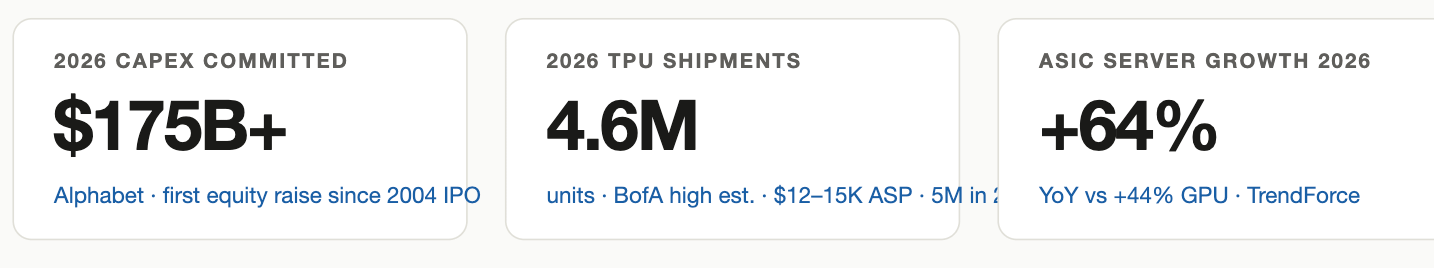

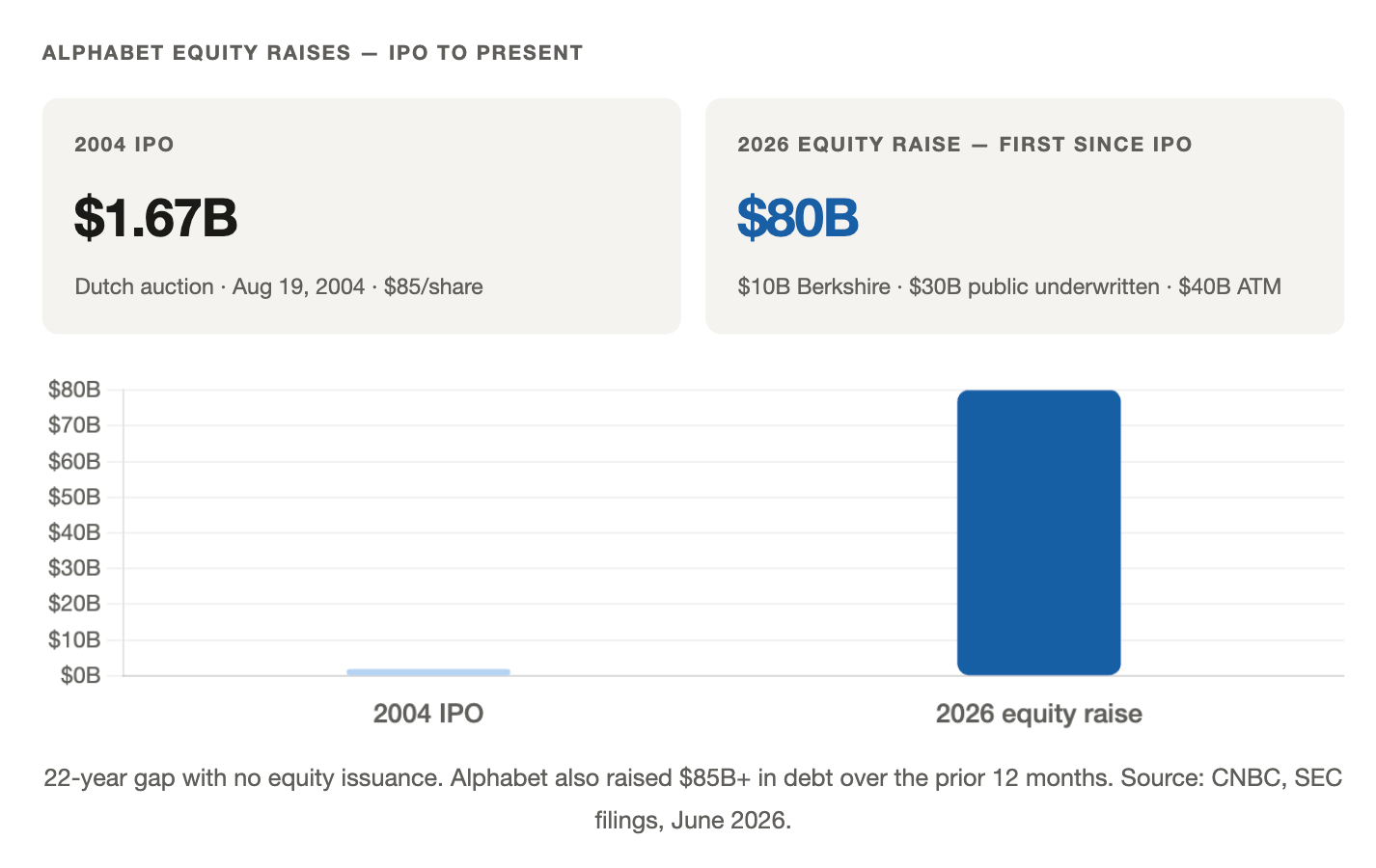

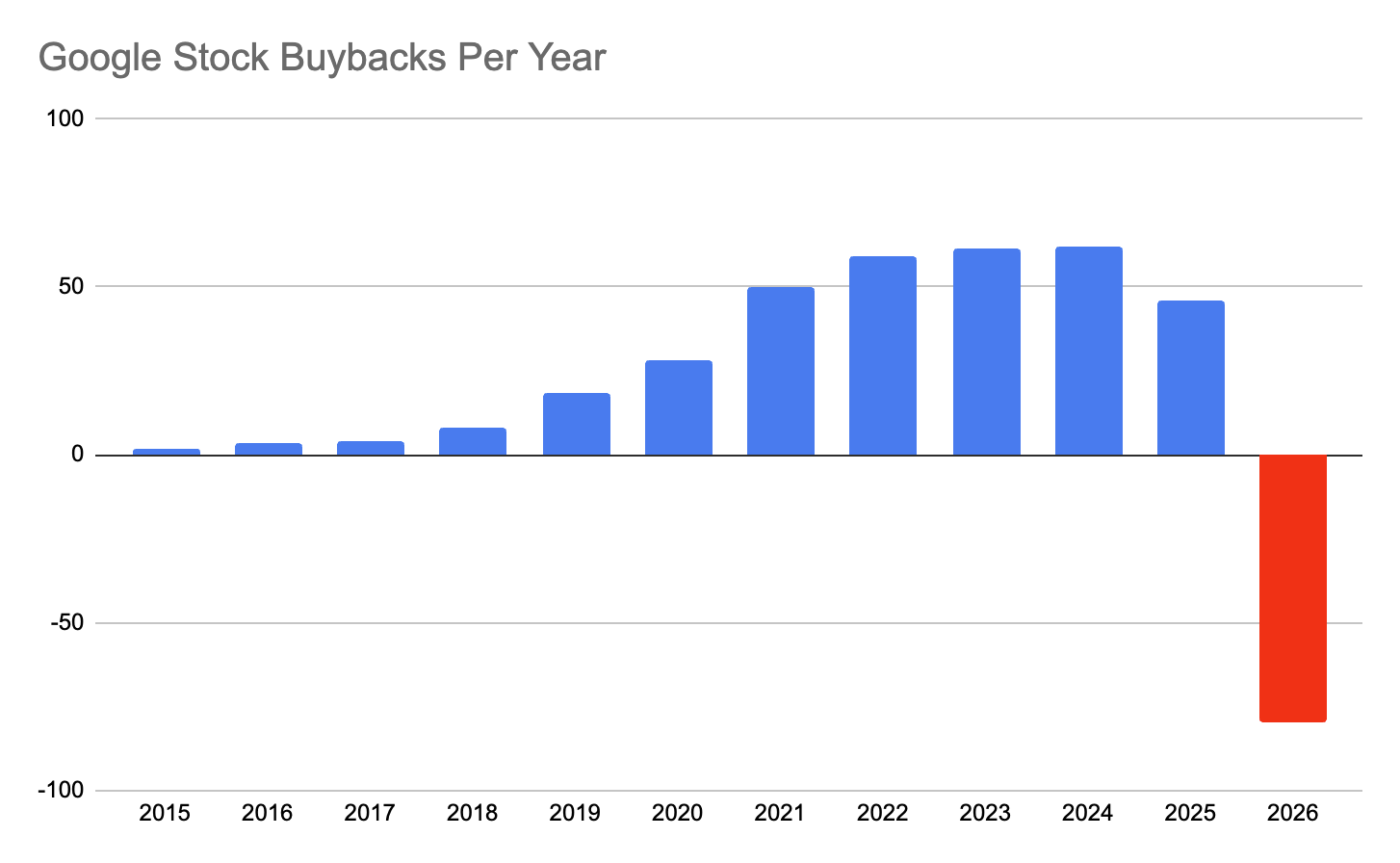

Google’s Tensor Processing Unit program is no longer a side project to keep GPU costs down. It is the structural foundation of how Google intends to own AI compute economics for the next decade. The signal most investors missed: in 2026, Alphabet conducted its first equity raise since its 2004 IPO, pulling in $80 billion — a move that only makes sense if the capital requirements of this infrastructure buildout exceed what operating cash flows can absorb. Alphabet spent $91.4B in capex in 2025 (up from $52.5B in 2024) and has committed $175–185B for 2026.

We first started writing about hyperscaler ASIC programs and the Google TPU back in early 2024. The ASIC programs have expanded massively since. This post maps every layer of the TPU supply chain: silicon design, fabrication, packaging, memory, optical interconnects, and system assembly — with the key beneficiaries at each layer.

The popular narrative is that Google does everything themselves. The reality? Their infrastructure relies on a quiet, but critical, ecosystem of hardware partners. The architecture is Google’s. The implementation is not.

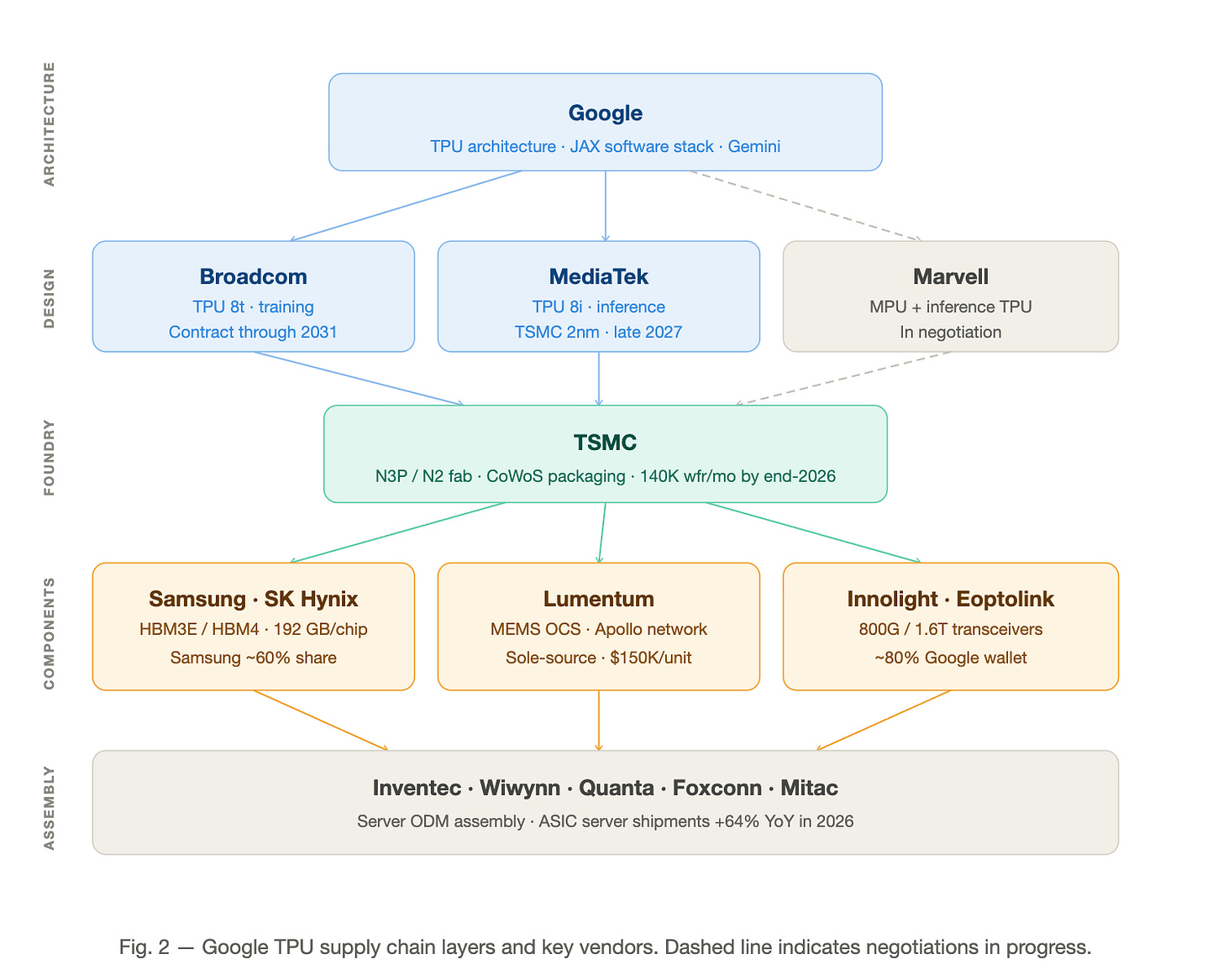

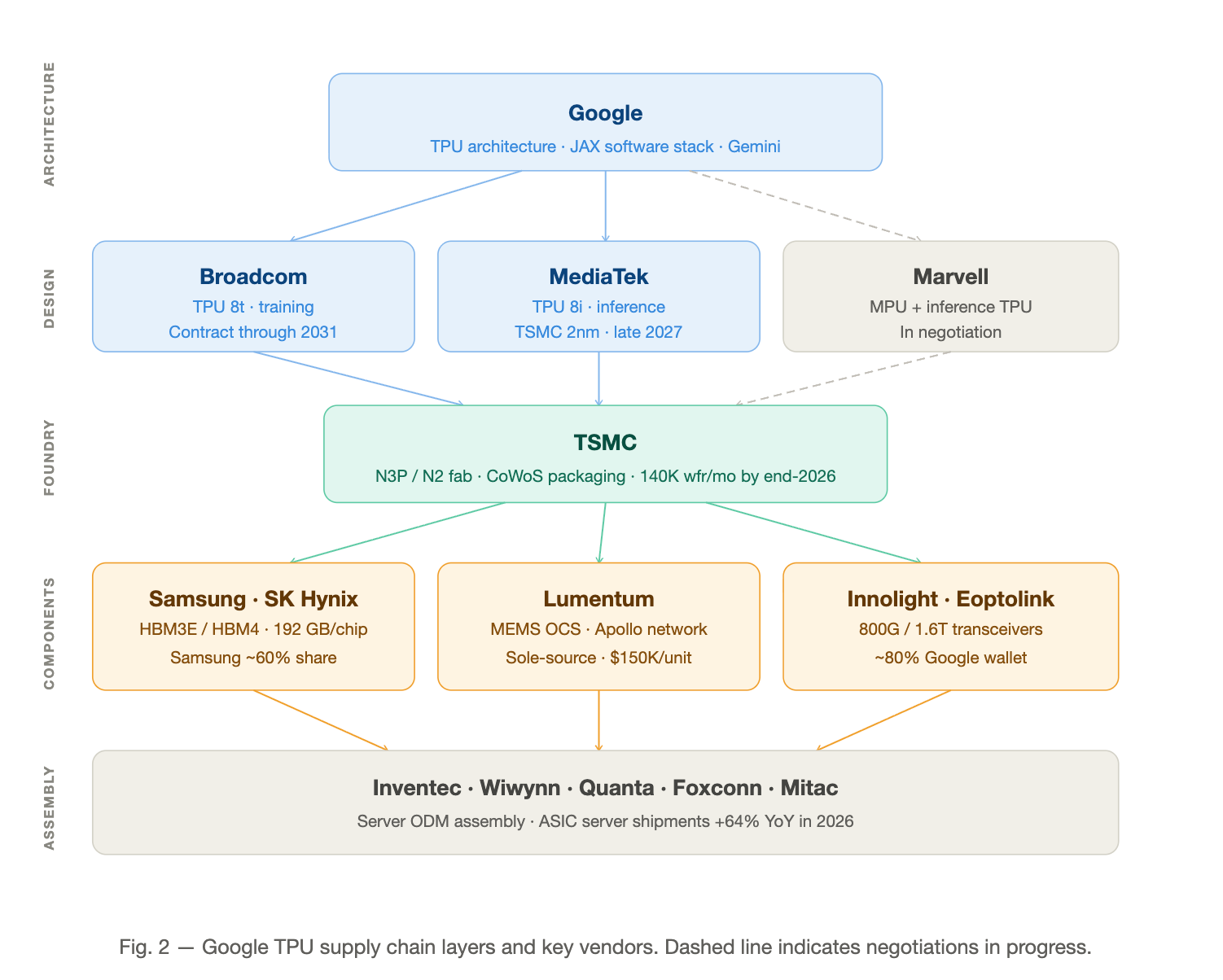

These design partners feed into a five-layer supply chain extending from chip architecture through to server rack assembly across six countries.

Architecture: What Ironwood Actually Is

Before mapping the supply chain, the architecture matters. Google’s seventh-generation TPU — Ironwood (TPUv7) — represents a fundamental design break, and its choices determine who wins supply chain share.

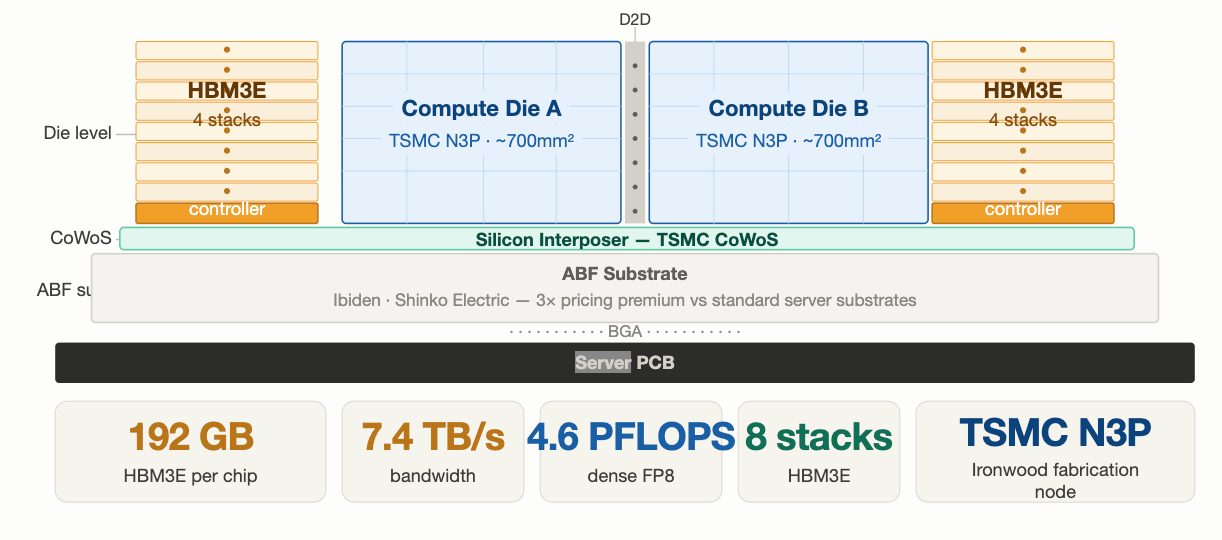

Each chip delivers 4.6 petaFLOPS of dense FP8 — ahead of Nvidia’s B200 at 4.5 PFLOPS — with 192 GB of HBM3E at 7.4 TB/s bandwidth via eight stacks. Manufactured on TSMC N3P with CoWoS advanced packaging, Ironwood is a chiplet design with two dies connected via a 6x-speed die-to-die link. The defining architectural bet is the network: 9,216-chip superpods interconnected via a 3D Torus topology and Google’s Apollo Optical Circuit Switch (OCS) — an all-optical fabric where a single switch draws ~100W versus ~3,000W for traditional electronic switching. At pod scale, that delta is structural.

2026 TPU shipment estimates span 3.3 million units on the supply-constrained end (DigiTimes Research, citing CoWoS packaging limits) to 4.6 million on the high end (Bank of America). The range reflects a genuine CoWoS allocation constraint, not demand uncertainty — Google’s order book is not the binding variable. ASIC server shipments overall are forecast to grow 64.2% in 2026 versus 43.8% for GPU servers, with Google accounting for the dominant share among hyperscalers.

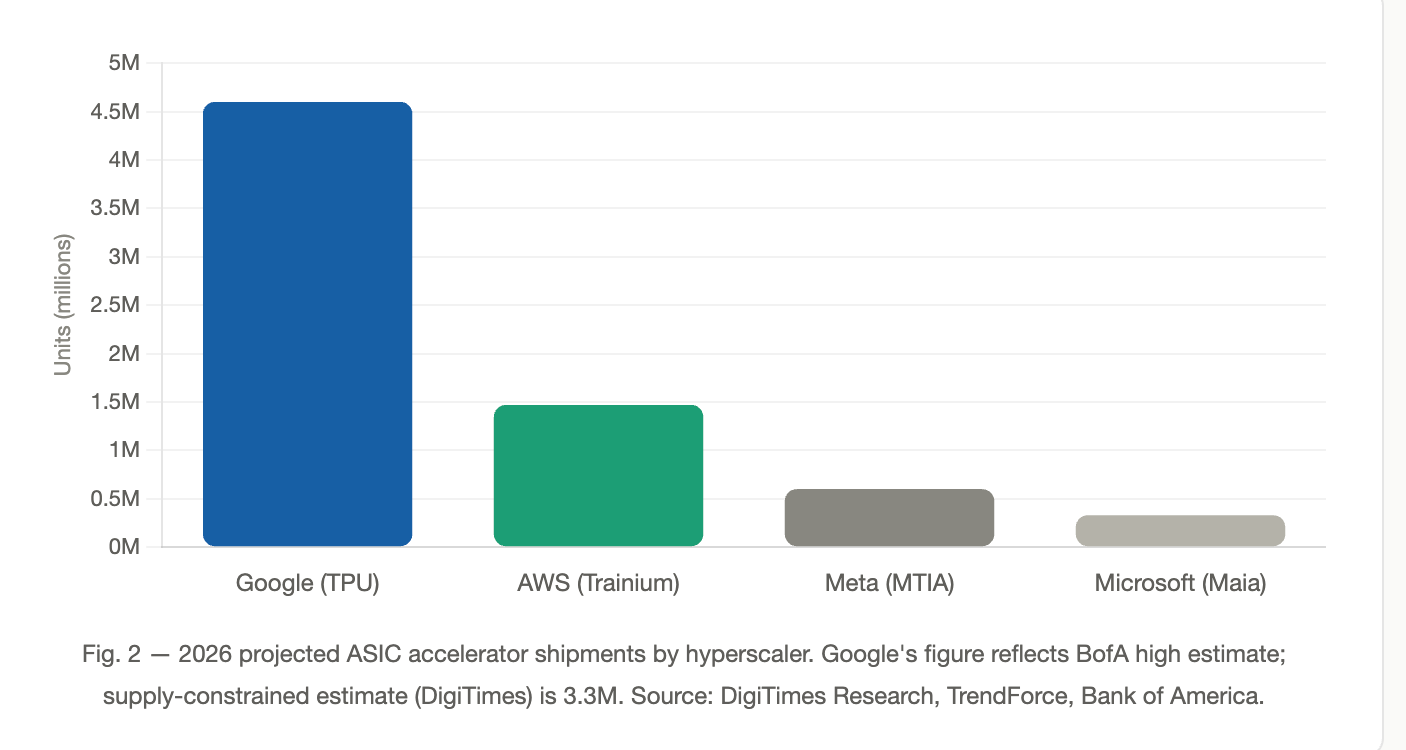

2026 projected ASIC accelerator shipments by hyperscaler. Source: DigiTimes Research, TrendForce.

Silicon Design Partners

Google owns the TPU architecture and software stack. The implementation work is distributed across a growing set of ASIC design partners — all fabbing at TSMC — with deliberate competitive tension built in.

Broadcom — primary design partner

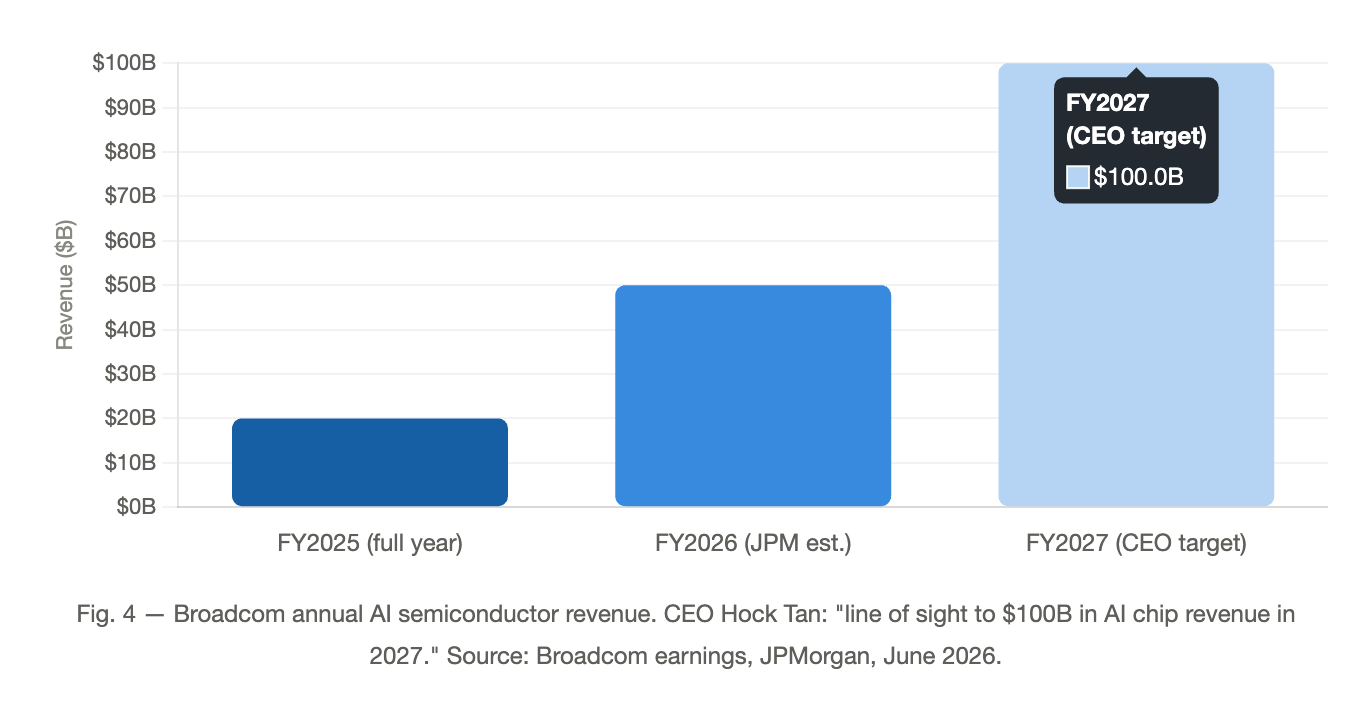

Broadcom translates Google’s architecture into a manufacturable ASIC layout, contributes high-speed SerDes IP, handles power delivery, and coordinates CoWoS packaging with TSMC. The structural position is the story: the contract runs through 2031, Broadcom carries a $73B AI backlog scheduled for delivery over the next 18 months, and the company holds >70% market share in custom AI accelerators globally. The financial trajectory follows from that position. Full-year FY2025 AI revenue reached $20B (+65% YoY); Q1 FY2026 came in at $8.4B (+106% YoY), with Q2 guided to $10.7B. JPMorgan forecasts $50B+ for full-year FY2026 — ~150% growth. CEO Hock Tan has stated “line of sight to $100B in AI chip revenue in 2027,” with Google and Anthropic representing the dominant share.

MediaTek — inference design partner

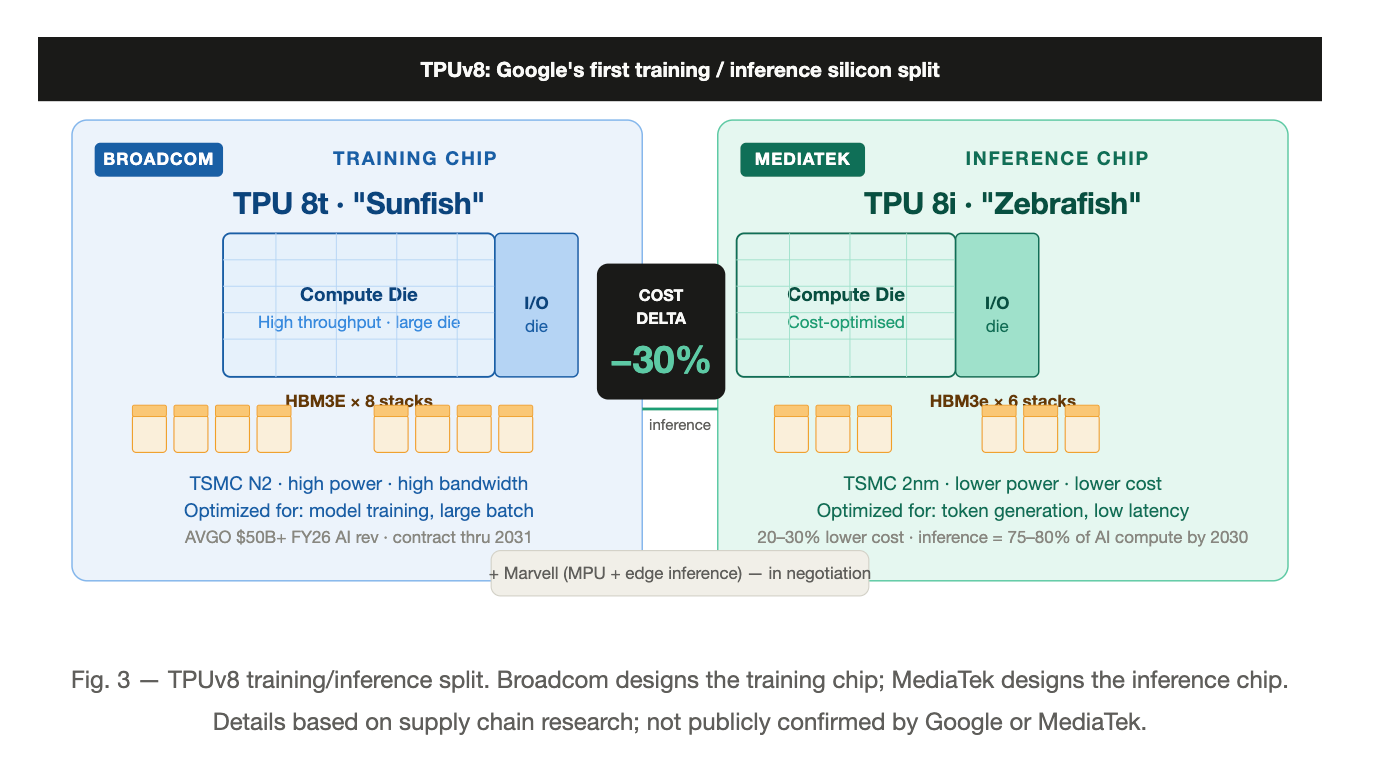

TPUv8 splits training and inference at the silicon level. Based on supply chain research (neither Google nor MediaTek has made a public announcement), MediaTek is designing the TPU 8i (”Zebrafish”) — a single compute die plus one I/O die plus six HBM3e stacks, targeting TSMC 2nm in late 2027. The cost profile is the thesis: Zebrafish targets 20–30% lower cost than the training variant. As inference grows to 75–80% of all AI compute cycles by 2030 (per industry estimates), a purpose-built, cost-tuned inference die has durable demand. For MediaTek, it is the entry ticket into hyperscale custom silicon — a market TrendForce sizes at $118B by 2033.

Marvell — in negotiation

Google is in active discussions with Marvell for two chips: a memory processing unit and an inference-optimized TPU variant. No contract is signed as of mid-2026. Marvell’s custom silicon business runs at a $1.5B annual rate across 18 cloud-provider design wins. Adding Google would be transformative. The multi-partner strategy — Broadcom for training, MediaTek for inference, Marvell for edge inference and memory processing — creates pricing competition and eliminates single-source capacity risk.

Fabrication and Packaging

TSMC manufactures every Google TPU. Ironwood runs on N3P; TPUv8 targets N2, with tape-outs planned for 2026–2027. TSMC also handles CoWoS advanced packaging — the step integrating compute chiplets with HBM3e stacks. TSMC is targeting 140,000 CoWoS wafers per month by end-2026, a 4x expansion from early 2024. Even at that scale, CoWoS remains an allocation market — which is why supply chain researchers and Bank of America disagree on 2026 TPU volumes by more than a million units.

CoWoS packaging requires ultra-high-density ABF substrates. Ibiden and Shinko Electric dominate this layer. AI server substrates carry approximately 3x the pricing premium of standard server substrates due to layer count and routing complexity. New fab construction takes 2–3 years and hundreds of millions in capital — supply cannot respond quickly to demand.

High-Bandwidth Memory

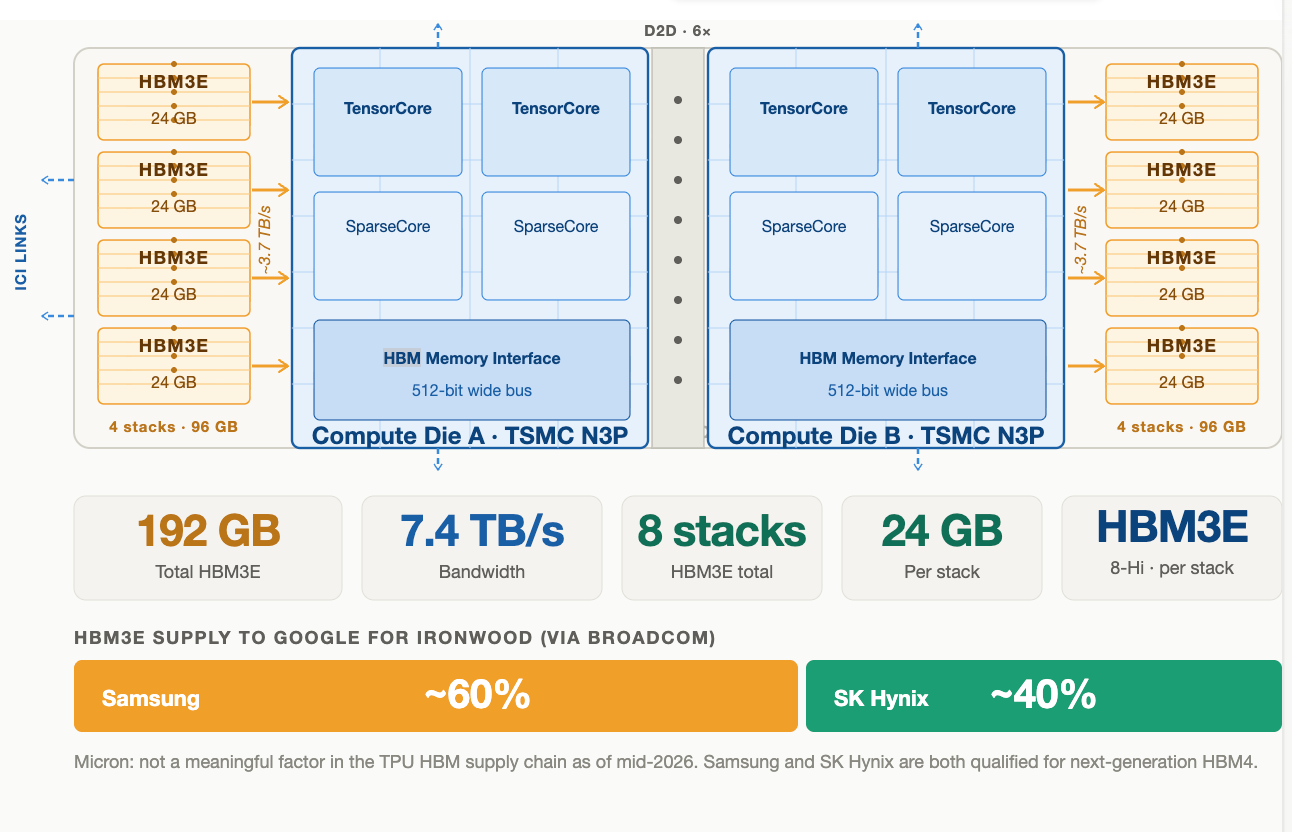

Ironwood’s 192 GB per chip, 8-stack HBM3E configuration makes HBM arguably the most consequential component constraint in the program. The chiplet design — two compute dies connected via a die-to-die interface rather than one monolithic die — is partly dictated by TSMC’s reticle size limit at N3P, but it also maximizes the number of HBM stacks each die can directly service: four stacks per die, each connected via a dedicated 512-bit memory bus. That physical arrangement is why HBM supply, not compute logic, is the effective ceiling on Ironwood production volumes.

Samsung holds approximately 60% of HBM3E supply to Google via Broadcom for Ironwood, with HBM4 already qualifying through Broadcom’s test process for the next generation. SK Hynix supplies the remaining ~40%. Micron is not a meaningful factor in this supply chain as of mid-2026.

Optical Interconnects — a differentiated layer

This is the layer most investors underestimate. Google’s Apollo OCS architecture is a full architectural break from conventional switching, and the qualified supplier base is narrow.

Lumentum — Apollo OCS system

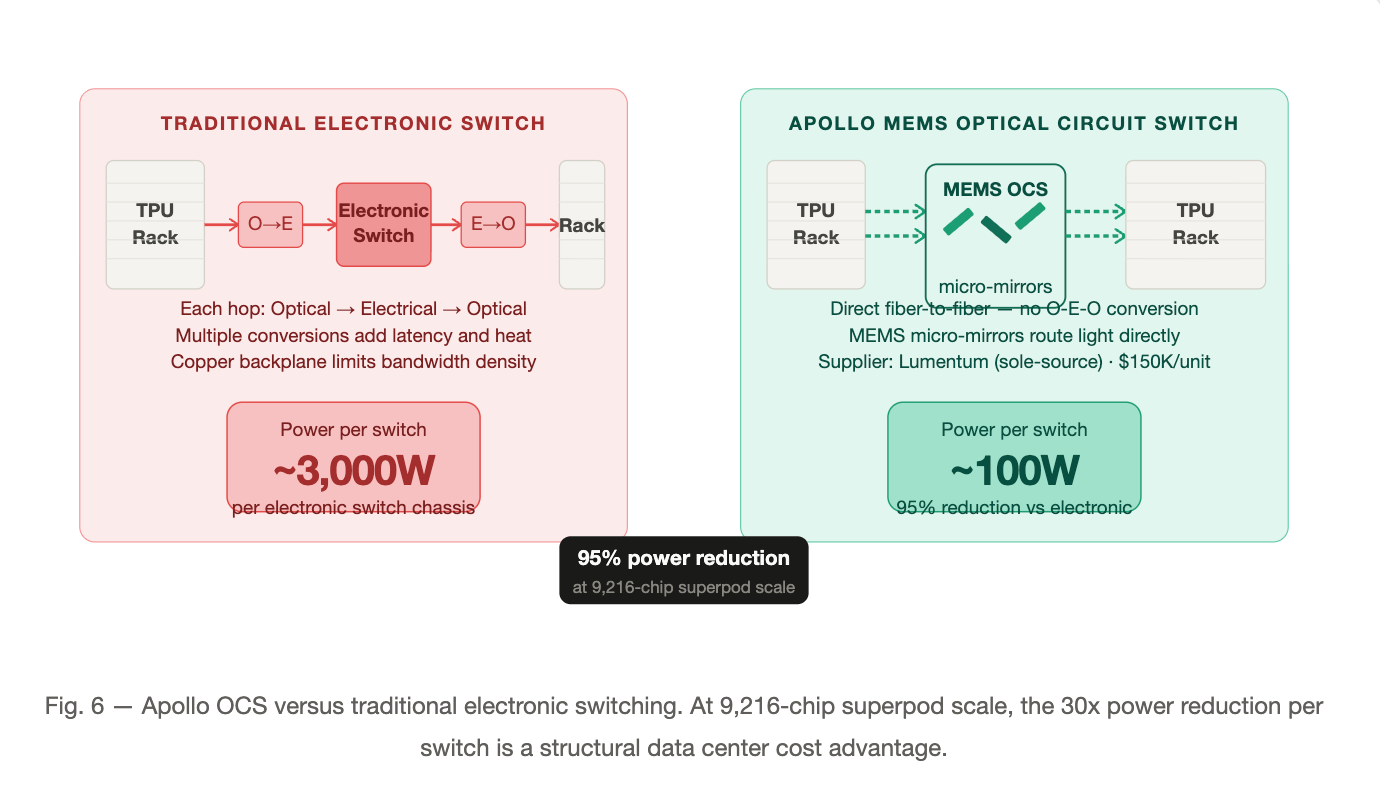

Lumentum supplies the MEMS-based optical circuit switches at the heart of Apollo. These switches use micro-mirrors to enable direct fiber-to-fiber connections, eliminating optical-electrical-optical conversions. A single Apollo switch draws ~100W versus ~3,000W for a comparable electronic switch — a 95% power reduction. Lumentum’s primary commercial product is a 300×300 OCS at approximately $150,000 per unit (~$500/port). In 2025, Google deployed an estimated 12,000–15,000 units. Lumentum is the sole-source supplier for this component; there is no qualified alternative in production.

Innolight and Eoptolink — 800G+ transceivers

Every cross-cabinet link in an Ironwood pod runs on 800G or 1.6T optical transceivers. TrendForce projects Innolight — the larger of the two and Google’s primary silicon photonics collaborator on 1.6T development — will capture ~80% of Google’s 800G+ optical module orders in 2026. Eoptolink captures most of the remainder; it is a second-tier supplier by volume but strategically important for supply chain resilience. The company posted 179% revenue growth in 2024, driven by cloud operator direct sales, and has built a manufacturing facility in Thailand specifically to serve North American demand outside Chinese export-control exposure. Collectively, Google’s Ironwood architecture is projected to push 800G+ transceiver share above 60% of all optical module demand by 2026 (TrendForce).

System Assembly — Server ODMs

TPU chips and optical components must be integrated into server platforms and racks. Taiwan-based ODMs dominate this work. Inventec is the most clearly confirmed primary ODM for Google’s TPU server builds, with management publicly expressing confidence in double-digit ASIC server shipment growth in 2026. Wiwynn (a Wistron subsidiary) is actively expanding SMT production capacity in Malaysia for ASIC server assembly. Quanta, Foxconn, and Mitac are all competing for additional allocation.

ASIC server shipments are forecast to grow 64.2% in 2026 versus 43.8% for GPU servers. The margin dynamic favors ODMs: ASIC servers carry lower unit prices than GPU platforms but require more customized design work and longer production runs, which compresses per-unit revenue while improving margin mix. The net effect is that ODM revenue from ASIC servers grows more slowly than volume, but profitability improves as ASIC share of the revenue mix increases.

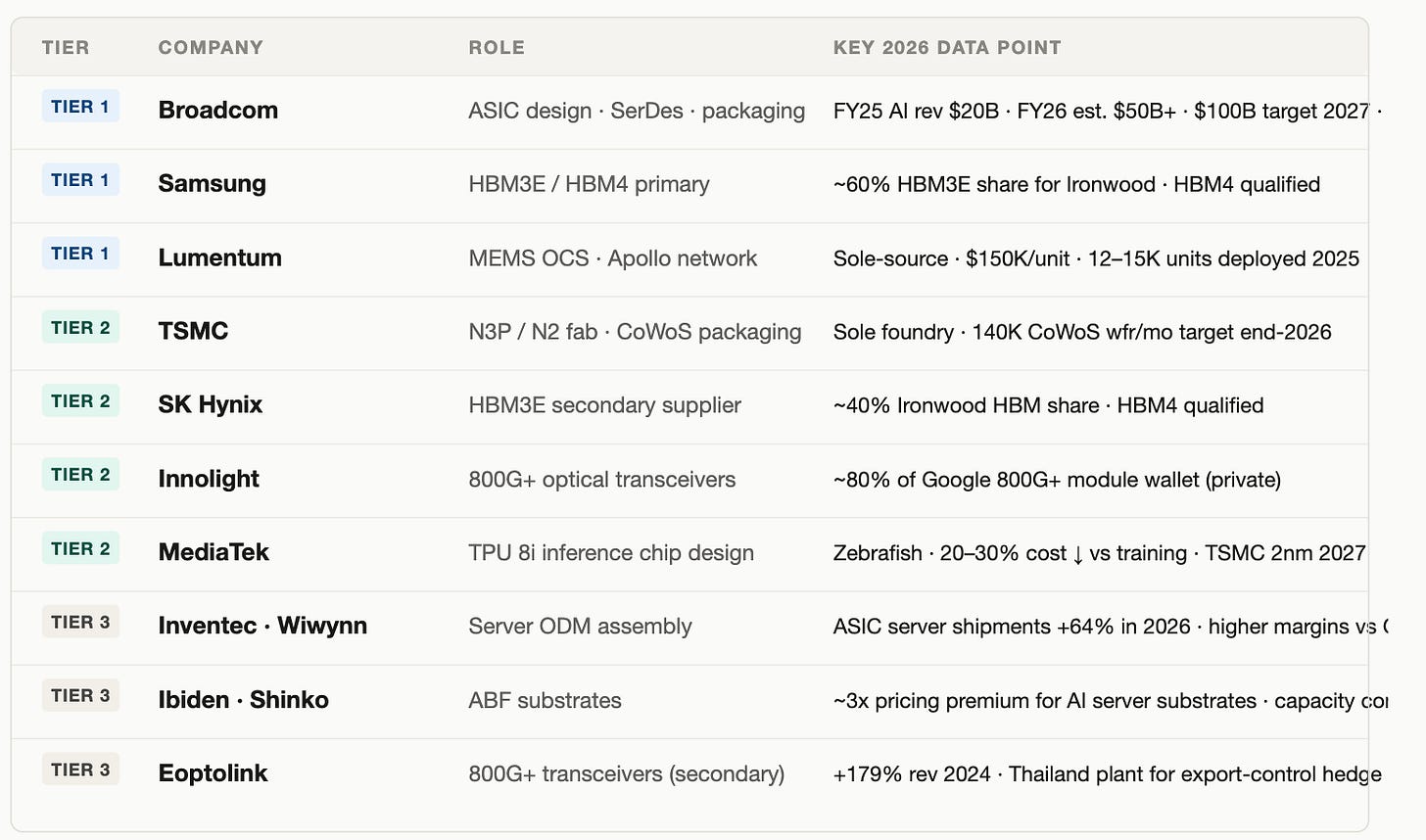

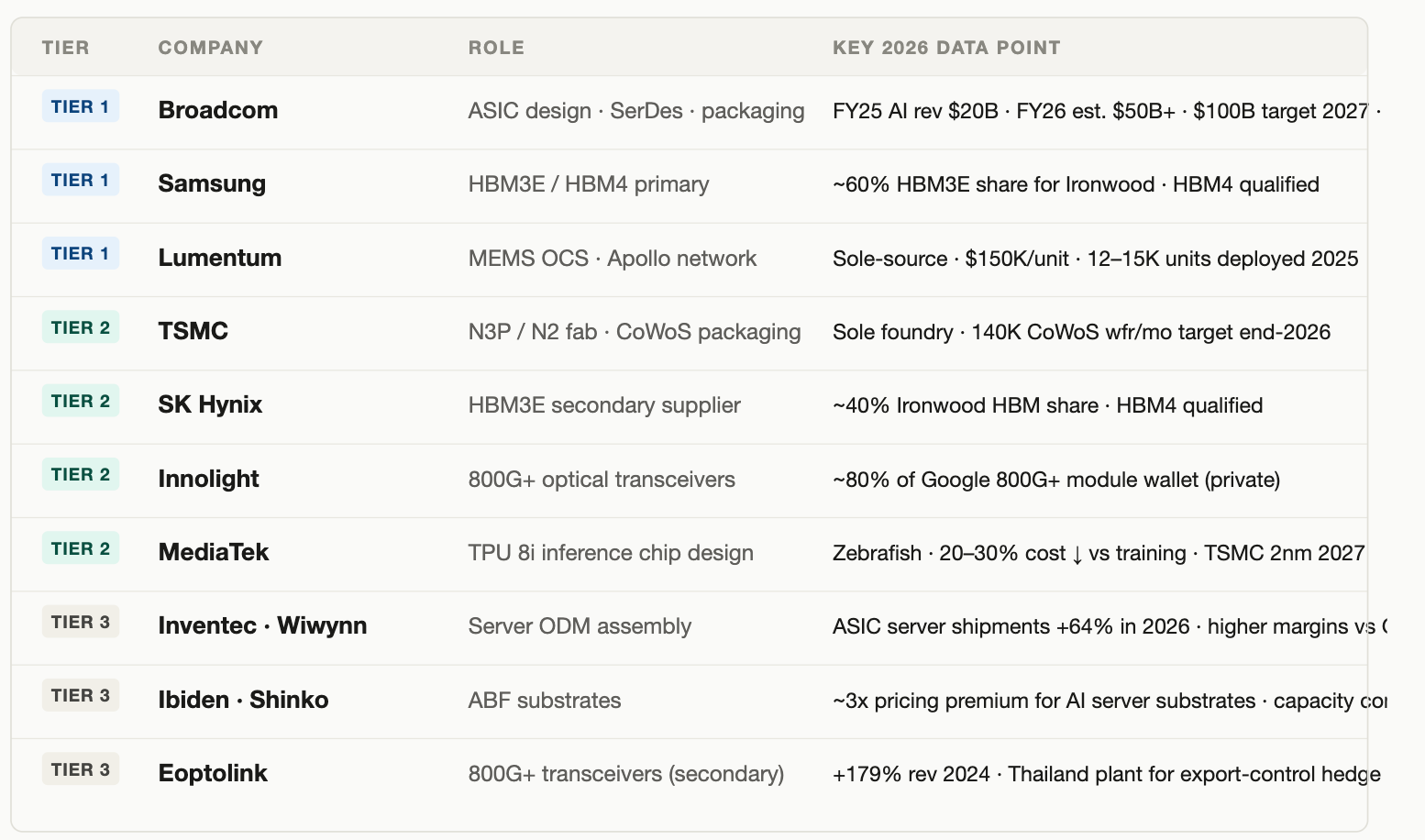

Beneficiary Summary

Closing Thesis

The companies with clearest structural exposure are Broadcom (silicon implementation, locked through 2031), Samsung (HBM memory, primary qualified supplier), and Lumentum (optical switching, sole-source). These are not cyclical trades on AI capex — they are design partners with multi-year roadmaps and switching costs measured in years.

At $175–185B in committed 2026 capex and 3.3–4.6M projected TPU shipments, the question is no longer whether Google’s custom silicon program is real. The question worth stress-testing is what breaks the thesis. Three scenarios are worth watching: first, CoWoS yield issues at TSMC N2 that compress 2027 volumes below the 5M unit consensus — this directly impairs every vendor in the stack. Second, Samsung HBM4 qualification delays that concentrate more supply at SK Hynix and introduce a single-source risk Google has spent years trying to avoid. Third, Nvidia closing the inference cost-per-token gap faster than expected through Blackwell derivatives — this doesn’t threaten Broadcom’s training revenue, but it limits how aggressively Google can price TPU inference access externally, which is increasingly the commercial justification for the capex.

None of these scenarios break the supply chain. They delay it and compress near-term returns for the vendors most dependent on volume ramp. The structural position of the Tier 1 beneficiaries — design lock-in, sole-source components, multi-year agreements — survives all three. What changes is the timeline, not the destination.
